Car Bottoming Out: Meaning, Causes and What to Check

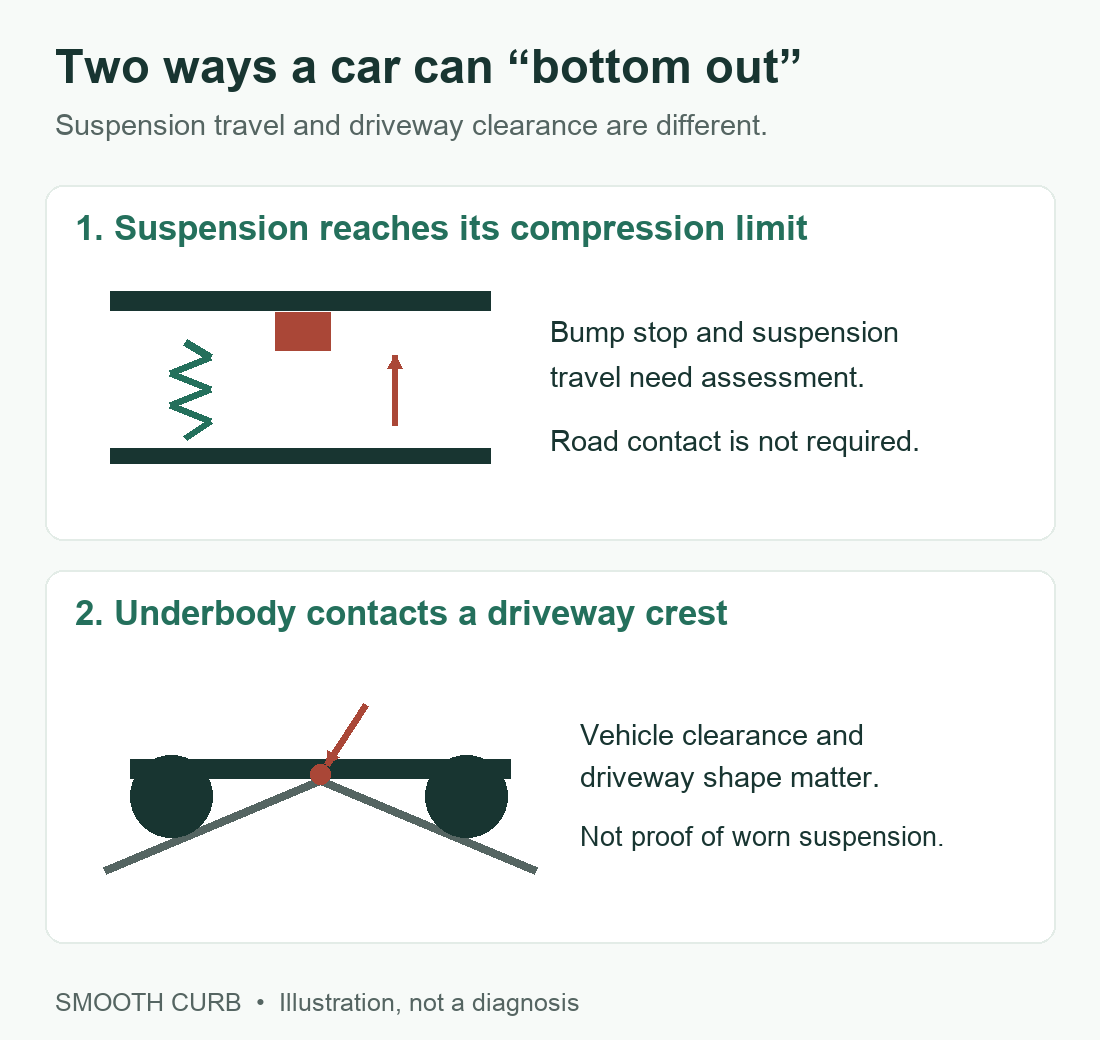

Drivers use “bottoming out” for two related experiences: the suspension reaching its compression limit, or the body or underside of the car touching the road. They can happen together, but a driveway scrape does not mean the suspension has fully compressed. Where and when the contact happens helps determine what to check.
What does bottoming out mean in a car?
In suspension terms, bottoming out means using up the available compression travel and reaching the bump stop. VB-Airsuspension describes this compression limit and its relationship to loading and ride height. The bump stop limits suspension movement; reaching it does not necessarily mean the underside is touching the ground.
In everyday driveway use, people also say their car “bottomed out” when a bumper, exhaust or other low part scrapes a transition or crest. That is a clearance problem. Jeep’s clearance glossary separates approach angle at the front, departure angle at the rear and breakover angle beneath the middle. These explain why the same vehicle may clear one driveway and touch another.
What causes a car to bottom out? Start with the situation
| When or where it happens | What to investigate |
|---|---|
| Front scrapes at a driveway entrance | Front overhang, low trim and the abruptness of the road-to-driveway transition. |
| Middle touches at a driveway crest | The crest and clearance between the wheels; an entrance ramp may not address this location. |
| Hard compression over ordinary bumps | Available suspension travel, loading and suspension condition. |
| Vehicle sits noticeably lower when loaded | Vehicle load limits, load distribution and whether suspension components need attention. |
| New noise, leak or loose part after contact | Impact damage before choosing a clearance solution. |
A car that looks level when parked can still behave differently over a bump. Monroe’s ride-control guidance explains why acceptable static ride height does not rule out problems under movement or load. Conversely, a scrape confined to one steep entrance is not enough evidence to diagnose worn shocks.
How to fix a car that keeps bottoming out
First identify whether the repeated event is suspension compression or physical contact with a particular surface. Note the location, vehicle load, approximate speed and where the sound seems to come from. Describe those conditions to a repairer instead of asking for an upgrade before the cause is known.
For recurring hard compression, unusual sag, poor control or a new change in ride behavior, have the suspension and loading assessed. A suitable repair depends on the finding. Performance shocks, lift kits, stiff bushings and skid plates are not interchangeable solutions; a protective plate also does not create more clearance.
Check vehicle loading limits and maintain the specified tire pressure. Do not overinflate tires to gain height. If your vehicle has a factory height-adjustment system, use it according to its own instructions, including any speed and operating restrictions.
If it only happens on your driveway
Work out whether the front, middle or rear makes contact before changing the driveway. A compatible curb ramp may soften a rolled-curb entrance transition; it will not necessarily solve contact at a crest farther up the driveway. Measure the location and check drainage, fit and local requirements before installing anything.
Our guide to a car scraping the driveway covers the location checks in more detail. For a rolled-curb entrance, use the driveway curb-ramp fit guide to assess suitability. Approach a known problem slowly and only in a way that remains safe and legal for surrounding traffic.
What to check after a scrape
From a safe standing position, look for a hanging cover or fluid beneath the vehicle. Do not crawl underneath a vehicle supported only by its emergency jack. A new oil-pressure warning, substantial leak, dragging part or change in braking or steering needs prompt attention. Arrange assistance where continued movement could worsen the problem.
For a new sound following contact, see noise after scraping the bottom of your car. Noise timing can help a technician narrow the inspection, but it cannot establish the damaged part on its own.
Bottoming-out questions
Does bottoming out always damage a car?
The term describes an event, not a confirmed diagnosis. The outcome depends on what contacted the surface and how hard. New noise, leaks, loose parts or changed handling are reasons to have it checked.
Why does my car bottom out with passengers or luggage?
Added load changes the load on the suspension and may reduce available clearance or travel. Check the vehicle’s load limits and have unexpected sag or repeated hard compression assessed.
Will a curb ramp stop my car bottoming out?
It may help when a compatible ramp changes the specific entrance transition causing contact. It does not repair worn suspension or necessarily solve a driveway crest problem.
