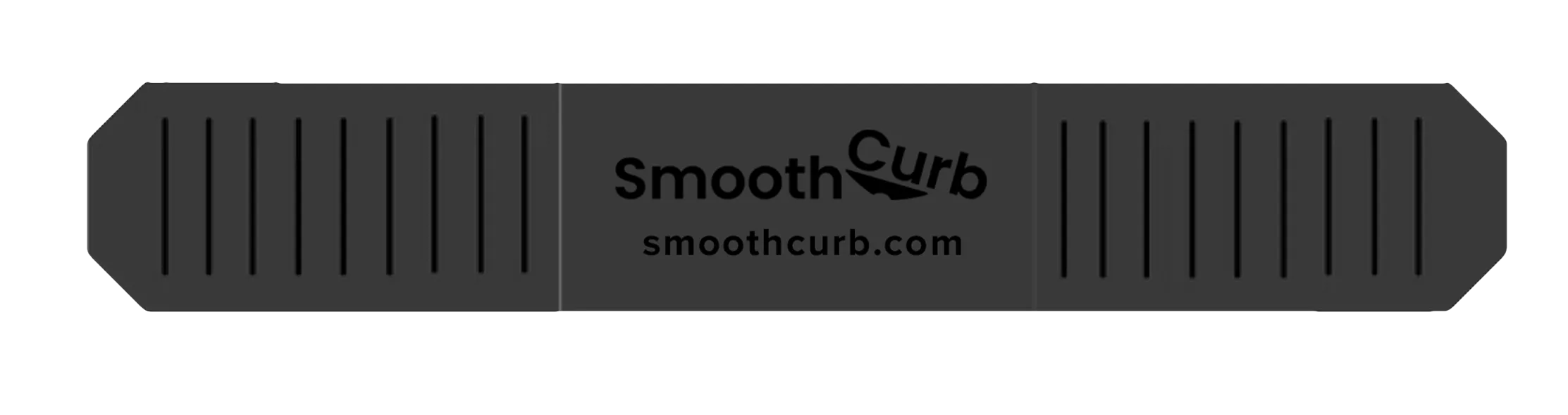

Smooth Curb driveway curb ramp technical diagram showing dimensions

Step By Step Installation

Before assembly, use our driveway ramp installation planning checklist to check fit, tire-path coverage, placement and handling.

Smooth Curb driveway ramp package contents laid out for installation

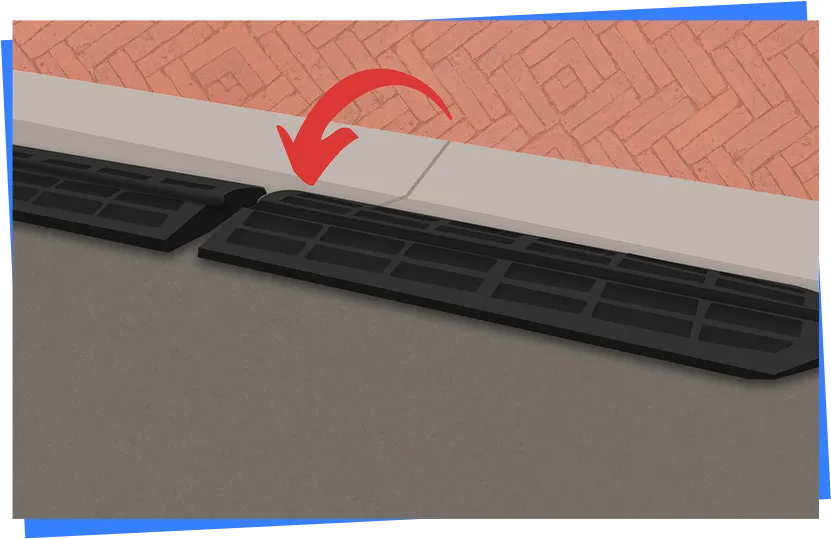

Step 1: Placement of Ramp Sections

Place all Smooth Curb™ Driveway Ramp sections on the gutter, centering them to your driveway’s width.

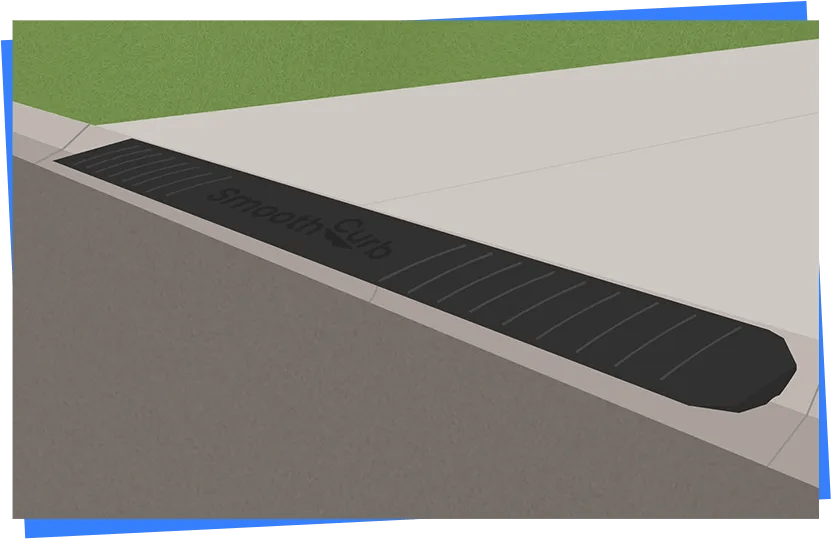

Step 1 - Clean your driveway curb before installing Smooth Curb ramp
Step 1 placing Smooth Curb ramp sections on driveway gutter

Step 2: Prepare for Assembly

Turn each section upside down onto the street, aligning them parallel to the gutter.

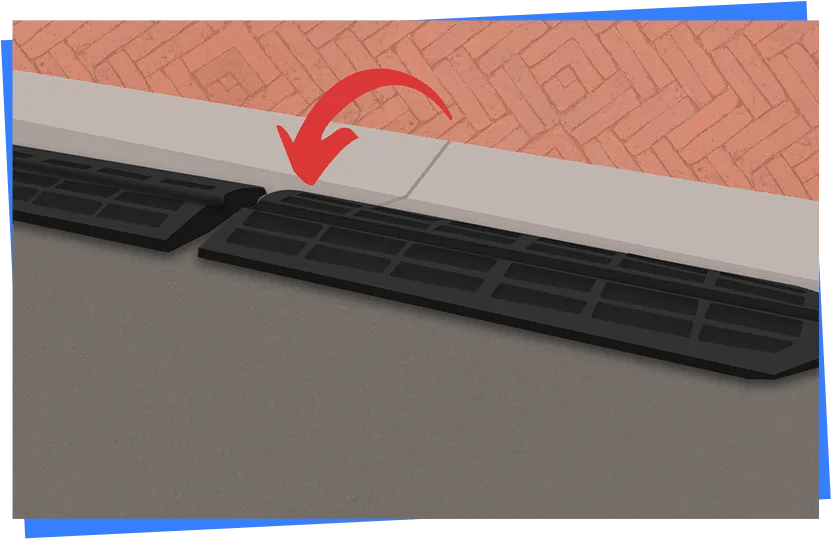

Step 2 - Position Smooth Curb center section on rolled curb
Step 2 connecting Smooth Curb ramp sections together

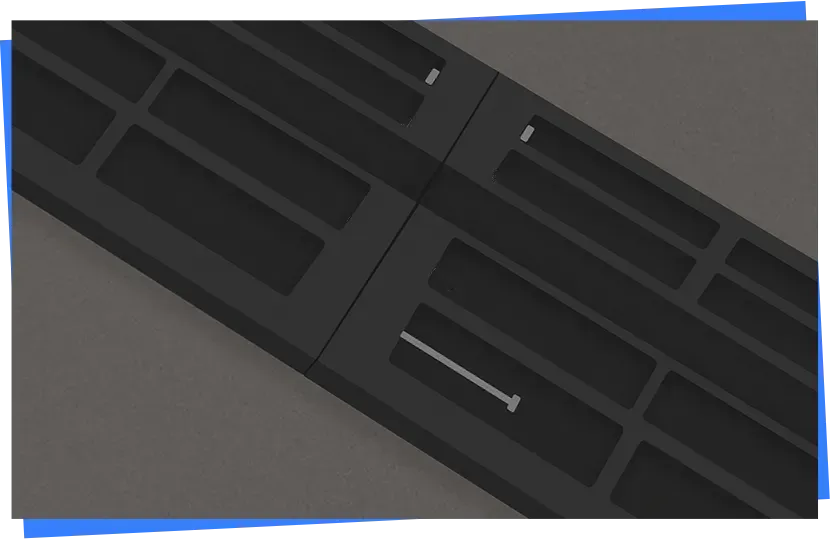

Step 3: Connecting the Sections

Begin connecting the sections by inserting and securing the bolts and nuts provided. Use the outside holes provided.

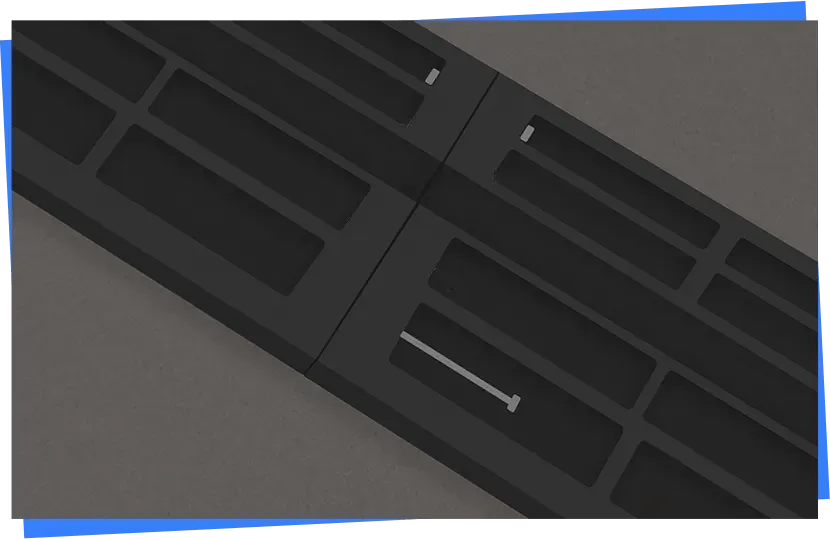

Step 3 of Smooth Curb driveway ramp installation process
Step 3 adjusting Smooth Curb ramp alignment on curb

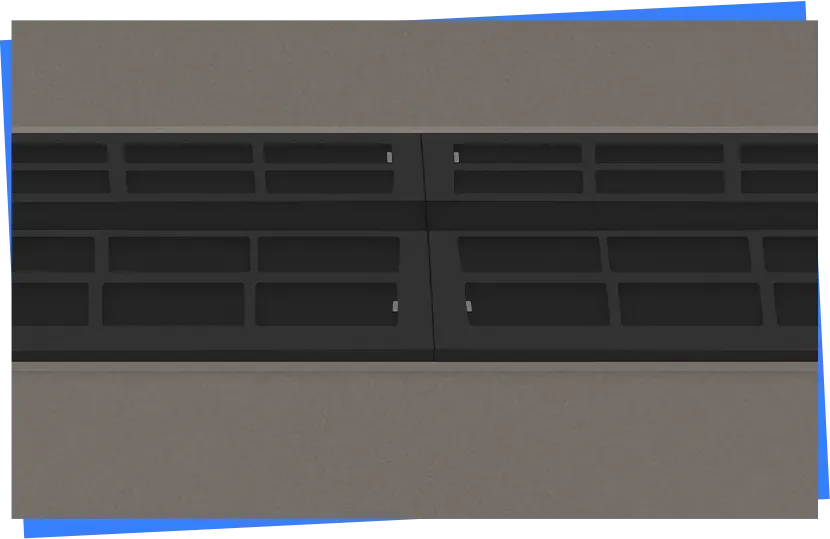

Step 4: Securing the Connections

Ensure all bolts are tightened. Slightly more than hand-tightened is all that is needed.

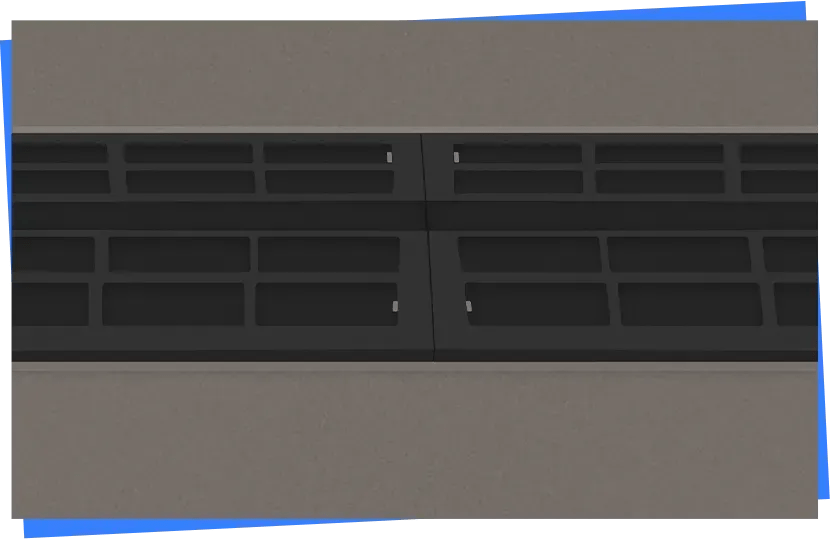

Step 4 - Adjust and align Smooth Curb driveway ramp sections
Step 4 completed Smooth Curb driveway ramp installation

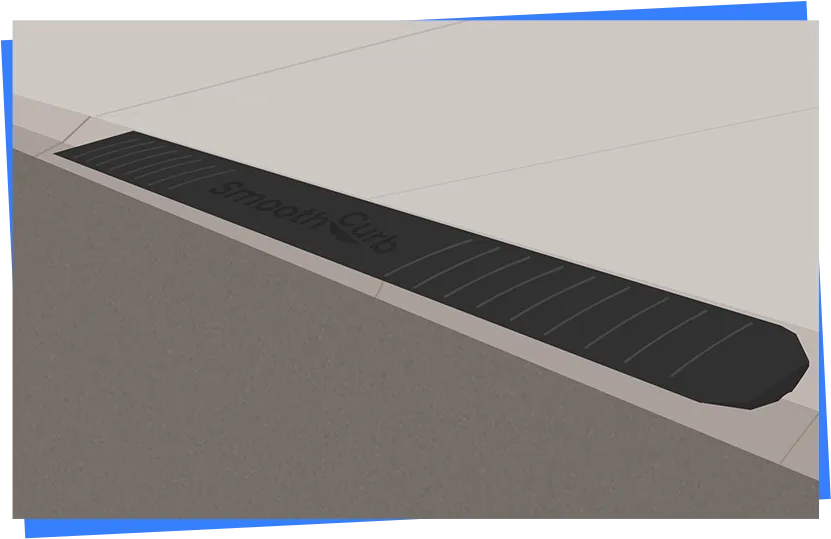

Step 5: Final Placement

Carefully flip the ramp back into position and align it with your curb’s height.

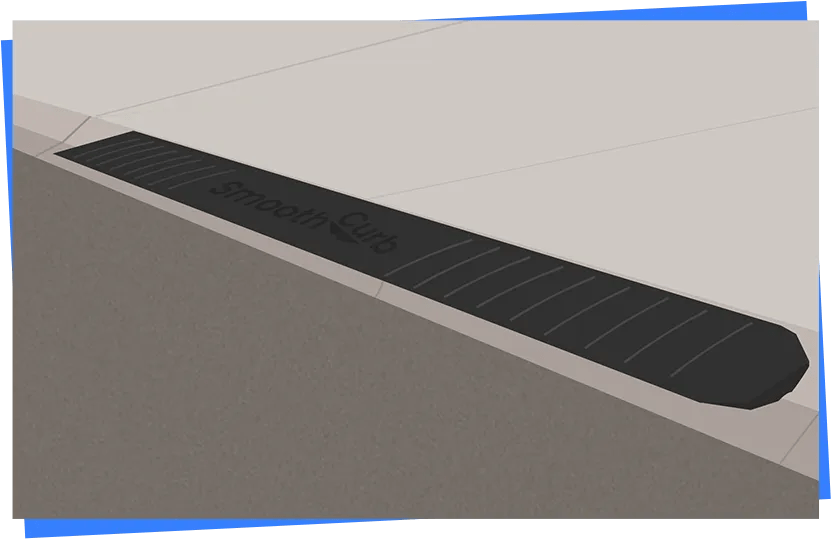

Step 5 - Smooth Curb driveway ramp fully installed and ready to use

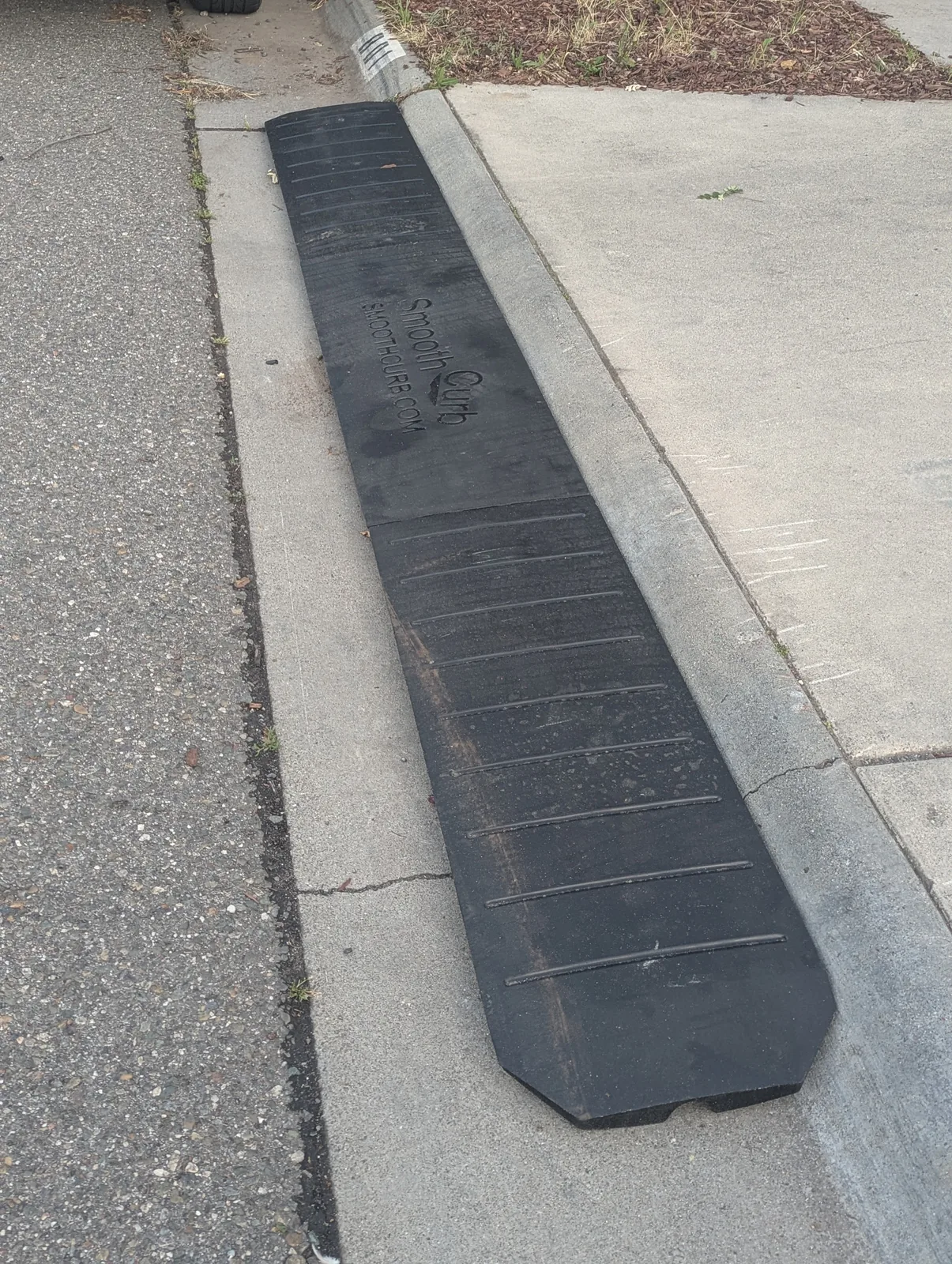

Close-up of connected Smooth Curb rubber ramp sections positioned beside a driveway curb
Customer-submitted close-up showing the connected sections, textured surface, and position beside the curb.

A closer look at an installed ramp

This customer photo shows the connected ramp sections positioned beside a driveway curb. Use it as a visual reference alongside the assembly steps above.

Check your own curb profile and tire paths before positioning the system. Keep the gutter and the drainage channel beneath the ramp clear.

See more customer installation photos

Post Installation Adjustments

The Smooth Curb™ Driveway Ramp is designed to stay in place with minimal adjustments. If repositioning is needed, disconnect the bolts before moving the sections to avoid damaging the product. Reconnect and position the sections using the assembly steps above.

Additional Center Section

Purchase an additional Smooth Curb™ center section to extend the width of your Smooth Curb™ system.

Smooth Curb additional center piece extension for wider driveways
